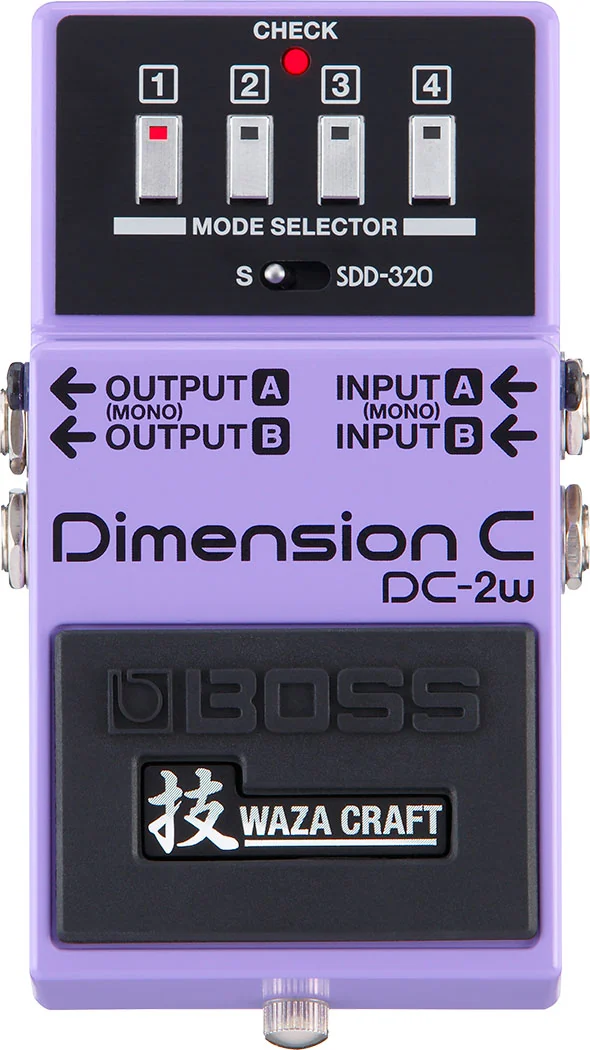

BOSS
DC-2W Dimension C
ChorusCurrent
Waza Craft Dimension effect recreating the DC-2 and SDD-320.
Quick specs
- Power
- 9 V
- Current draw
- 65 mA
- Dimensions (in)
- 2.87 × 5.13 × 2.37 in
- Weight (lb)
- 1.00 lb
- Bypass
- Buffered
- Inputs
- 2× 1/4-inch phone Mono/Stereo
- Outputs
- 2× 1/4-inch phone Mono/Stereo
Compare this pedal
Pick a second pedal to see the two side by side.
Controls
S/SDD-320
MODE SELECTOR 1
2
3
4
Power requirements
- Voltage
- 9 V
- Power type
- DC
- Current draw
- 65 mA
- Battery operation
- Yes
- Battery type
- 9 V (6LR61)
Dimensions & weight
- Width
- 2.87 in
- Depth
- 5.13 in
- Height
- 2.37 in
- Weight
- 1.00 lb
Connections
- Inputs
- 2× 1/4-inch phone Mono/Stereo
- Outputs
- 2× 1/4-inch phone Mono/Stereo
- INPUT A (MONO) 1/4-inch
- Present
- INPUT B 1/4-inch
- Present
- OUTPUT A (MONO) 1/4-inch
- Present
- OUTPUT B 1/4-inch
- Present
- DC IN
- Present
Features
- Bypass
- Buffered
- Signal path
- Analog
- MIDI
- No
- Expression
- No
- Tap tempo
- No
- Footswitches
- 1
- USB
- No
- Bluetooth
- No
- SKU
- DC-2W
- Version
- Current production
