BOSS

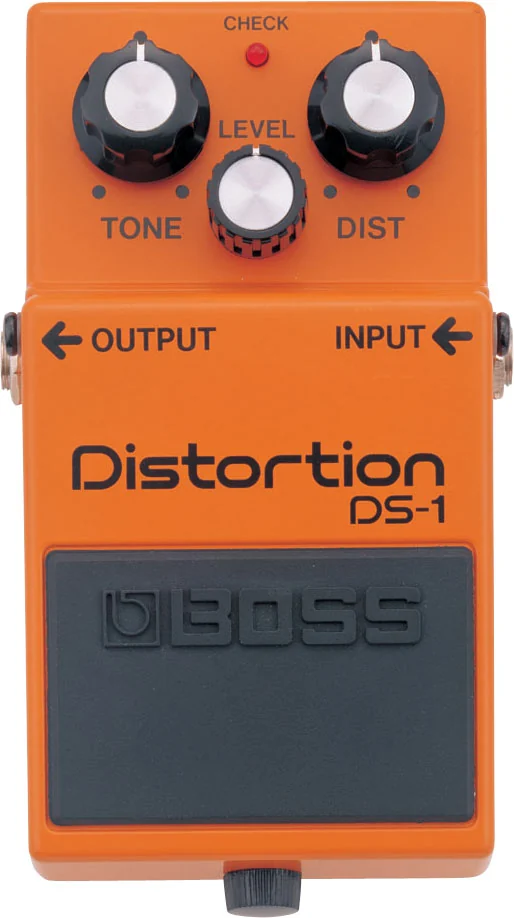

DS-1 Distortion
Classic BOSS compact distortion pedal introduced in 1978.
Quick specs
- Power
- 9 V
- Current draw
- 10 mA
- Dimensions (in)
- 2.87 × 5.13 × 2.37 in
- Weight (lb)
- 0.81 lb
- Bypass
- Buffered
- Inputs
- 1× 1/4-inch phone Mono
- Outputs
- 1× 1/4-inch phone Mono
Compare this pedal
Pick a second pedal to see the two side by side.
Controls
TONE
LEVEL
DIST
Power requirements
- Voltage
- 9 V
- Power type
- DC
- Current draw
- 10 mA
- Battery operation
- Yes
- Battery type
- 9 V 6LR61 / 6F22
Dimensions & weight
- Width
- 2.87 in
- Depth
- 5.13 in
- Height
- 2.37 in
- Weight
- 0.81 lb
Connections
- Inputs
- 1× 1/4-inch phone Mono
- Outputs
- 1× 1/4-inch phone Mono
- INPUT 1/4-inch
- Present
- OUTPUT 1/4-inch
- Present
- DC IN
- Present
Features
- Bypass
- Buffered
- Signal path
- Analog
- MIDI
- No
- Expression
- No
- Tap tempo
- No
- Footswitches
- 1
- SKU
- DS-1
- Version
- Current production
- Introduced
- 1978
