BOSS

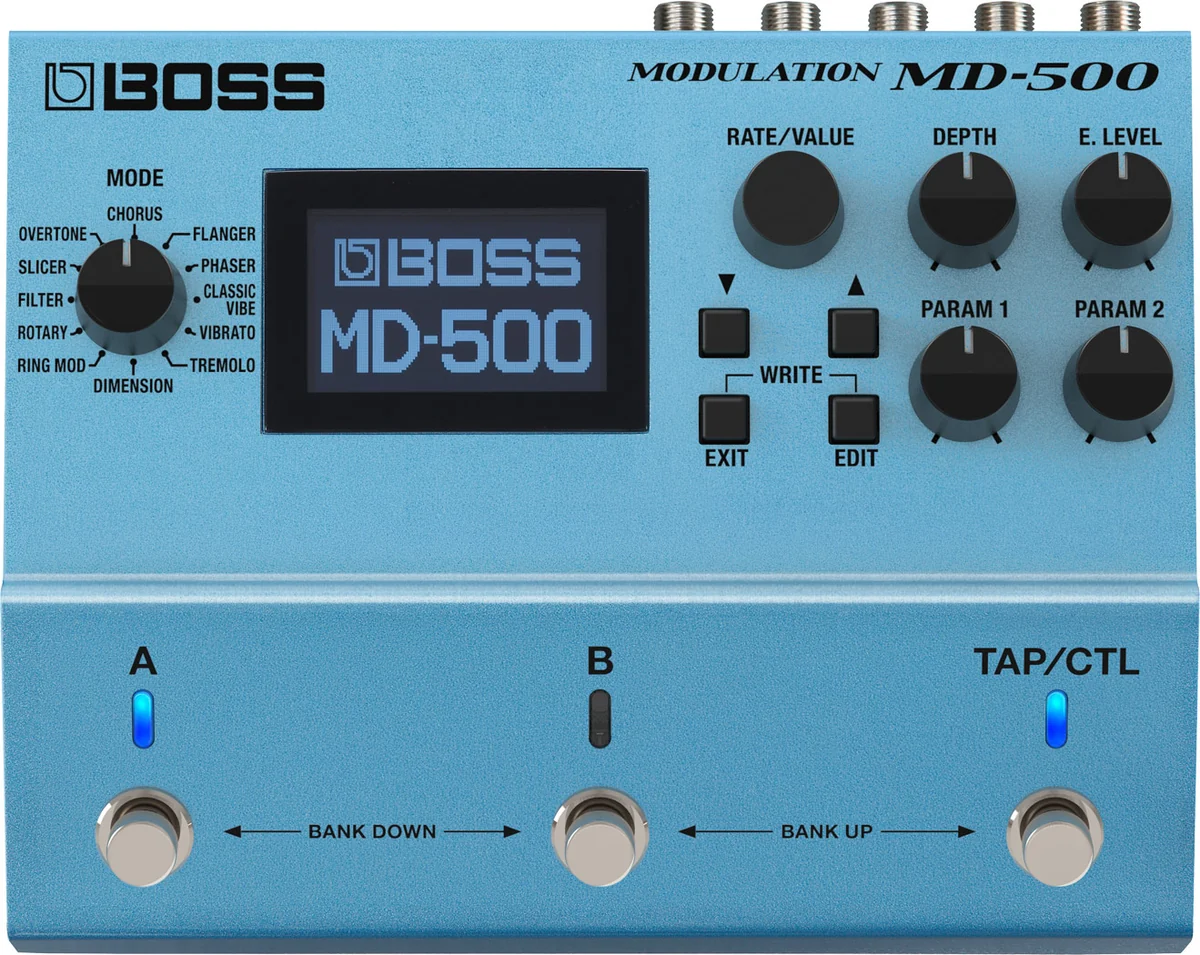

MD-500 Modulation
ModulationCurrent
Flagship 500 Series dual modulation processor.
Quick specs
- Power
- 9 V
- Current draw
- 225 mA
- Dimensions (in)
- 6.75 × 5.44 × 2.50 in
- Weight (lb)
- 2.25 lb
- Bypass
- Buffered or True bypass (relay)
- Inputs
- 2× 1/4-inch phone Stereo
- Outputs
- 2× 1/4-inch phone Stereo
Compare this pedal
Pick a second pedal to see the two side by side.
Controls
Not documented.
Power requirements
- Voltage
- 9 V
- Power type
- DC
- Current draw
- 225 mA
- Battery operation
- Yes
- Battery type
- AA alkaline LR6 x4
Dimensions & weight
- Width
- 6.75 in
- Depth
- 5.44 in
- Height
- 2.50 in
- Weight
- 2.25 lb
Connections
- Inputs
- 2× 1/4-inch phone Stereo
- Outputs
- 2× 1/4-inch phone Stereo
Features
- Bypass
- Buffered or True bypass (relay)
- SKU
- MD-500
- Version
- Current production
