BOSS

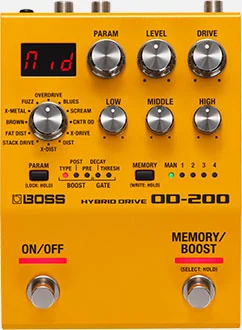

OD-200 Hybrid Drive
OverdriveCurrent
Hybrid analog/digital drive processor with multiple drive types, boost, gate, memories, and MIDI.
Quick specs
- Power
- 9 V
- Current draw
- 220 mA
- Dimensions (in)
- 4.00 × 5.44 × 2.50 in
- Weight (lb)
- 1.32 lb
- Bypass
- Buffered
- Inputs
- 1× 1/4-inch phone Mono
- Outputs
- 1× 1/4-inch phone Mono
Compare this pedal
Pick a second pedal to see the two side by side.
Controls
Not documented.
Power requirements
- Voltage
- 9 V
- Power type
- DC
- Current draw
- 220 mA
- Battery operation
- Yes
- Battery type
- AA alkaline (LR6) x3
Dimensions & weight
- Width
- 4.00 in
- Depth
- 5.44 in
- Height
- 2.50 in
- Weight
- 1.32 lb
Connections
- Inputs
- 1× 1/4-inch phone Mono
- Outputs
- 1× 1/4-inch phone Mono
Features
- Bypass
- Buffered
- Signal path
- Digital
- MIDI
- Yes
- USB
- Yes
- SKU
- OD-200
- Version
- Current production
