BOSS

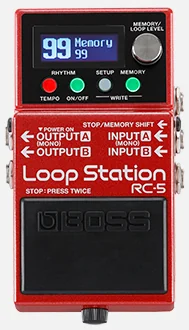

RC-5 Loop Station
LooperCurrent
Advanced compact stereo looper with 99 phrase memories, rhythms, MIDI, and USB.
Quick specs
- Power
- 9 V
- Current draw
- 170 mA
- Dimensions (in)
- 2.87 × 5.13 × 2.37 in
- Weight (lb)
- 1.00 lb
- Bypass
- Buffered
- Inputs
- 2× 1/4-inch phone Mono/Stereo
- Outputs
- 2× 1/4-inch phone Mono/Stereo
Compare this pedal
Pick a second pedal to see the two side by side.
Controls
MEMORY/LOOP LEVEL
RHYTHM
SETUP
VALUE
Power requirements
- Voltage
- 9 V
- Power type
- DC
- Current draw
- 170 mA
- Battery operation
- Yes
Dimensions & weight
- Width
- 2.87 in
- Depth
- 5.13 in
- Height
- 2.37 in
- Weight
- 1.00 lb
Connections
- Inputs
- 2× 1/4-inch phone Mono/Stereo
- Outputs
- 2× 1/4-inch phone Mono/Stereo
- INPUT A (MONO) 1/4-inch
- Present
- INPUT B 1/4-inch
- Present
- OUTPUT A (MONO) 1/4-inch
- Present
- OUTPUT B 1/4-inch
- Present
- STOP/MEMORY SHIFT TRS
- Present
- MIDI IN/OUT 3.5 mm TRS
- Present
- USB
- Present
- DC IN
- Present
Features
- Bypass
- Buffered
- Signal path
- Digital
- MIDI
- Yes
- MIDI connection
- 3.5 mm TRS
- Expression
- Yes
- Tap tempo
- Yes
- Footswitches
- 1
- USB
- Yes
- Bluetooth
- No
- SKU
- RC-5
- Version
- Current production
