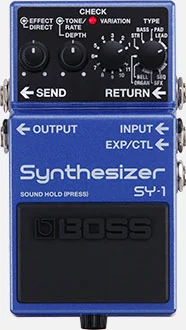

BOSS
SY-1 Synthesizer
SynthCurrent
Polyphonic guitar/bass synthesizer with 121 sounds and no special pickup required.
Quick specs
- Power
- 9 V
- Current draw
- 85 mA
- Dimensions (in)
- 2.87 × 5.13 × 2.37 in
- Weight (lb)
- 1.00 lb
- Bypass
- Buffered
- Inputs
- 1× 1/4-inch phone Mono
- Outputs
- 1× 1/4-inch phone Mono
Compare this pedal
Pick a second pedal to see the two side by side.
Controls
TYPE
VARIATION
TONE/RATE
DEPTH
EFFECT
DIRECT
Power requirements
- Voltage
- 9 V
- Power type
- DC
- Current draw
- 85 mA
- Battery operation
- Yes
Dimensions & weight
- Width
- 2.87 in
- Depth
- 5.13 in
- Height
- 2.37 in
- Weight
- 1.00 lb
Connections
- Inputs
- 1× 1/4-inch phone Mono
- Outputs
- 1× 1/4-inch phone Mono
- INPUT 1/4-inch
- Present
- SEND 1/4-inch
- Present
- RETURN 1/4-inch
- Present
- OUTPUT 1/4-inch
- Present
- EXP/CTL TRS 1/4-inch
- Present
- DC IN
- Present
Features
- Bypass
- Buffered
- Signal path
- Digital
- MIDI
- No
- Expression
- Yes
- Tap tempo
- No
- Footswitches
- 1
- USB
- No
- Bluetooth
- No
- SKU
- SY-1
- Version
- Current production
