Electro-Harmonix
Frequency Analyzer
Ring ModDiscontinued

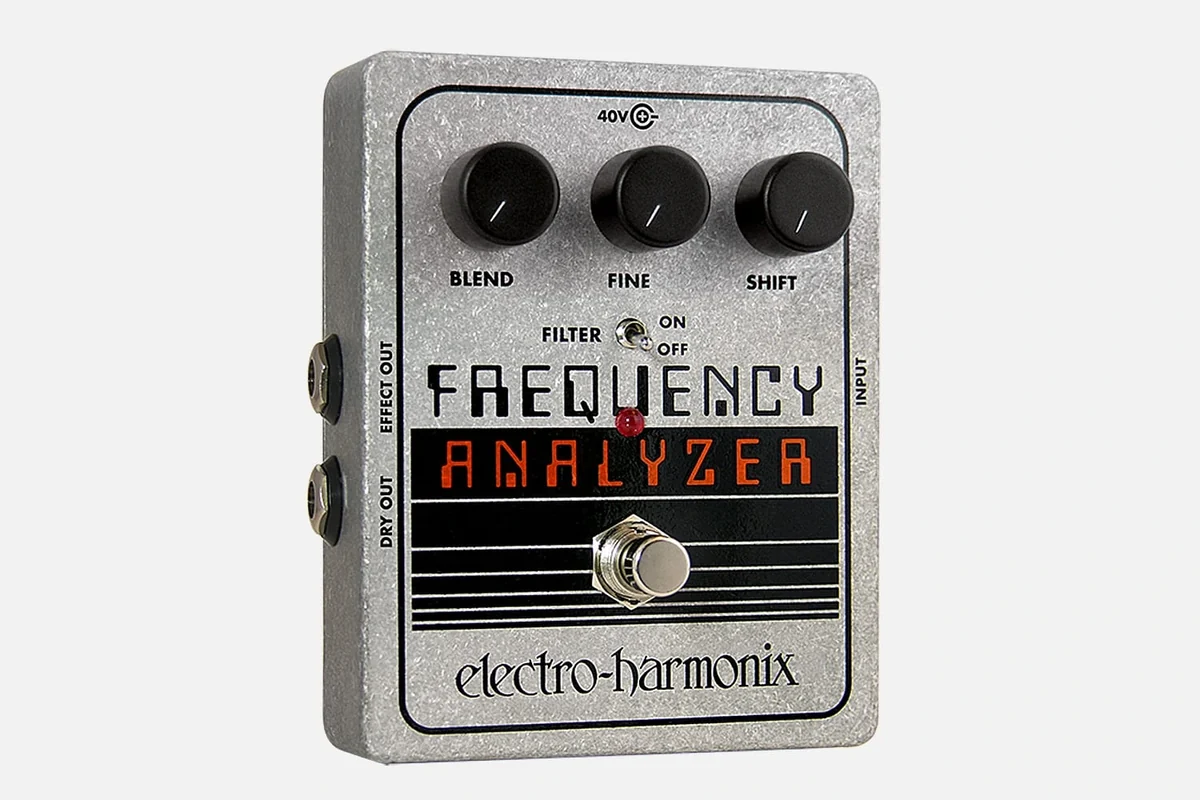

Historical Electro-Harmonix Frequency Analyzer.
Quick specs
- Power
- 40V DC
- Current draw
- 100 mA
- Dimensions (in)
- 6.73 × 7.99 × 3.27 in
- Inputs
- 1× 1/4" TS mono
- Outputs
- 1× 1/4" TS mono
Compare this pedal
Pick a second pedal to see the two side by side.
Controls
Not documented.
Power requirements
- Voltage
- 40V DC
- Power type
- DC
- Polarity
- center-positive
- Current draw
- 100 mA
Dimensions & weight
- Width
- 6.73 in
- Depth
- 7.99 in
- Height
- 3.27 in
Connections
- Inputs
- 1× 1/4" TS mono
- Outputs
- 1× 1/4" TS mono
Features
- SKU
- FREQUENCY ANALYZER
Documentation
- Manufacturer page
- —
- Manual
- Download
- Specs verified
- 2026-09-22
