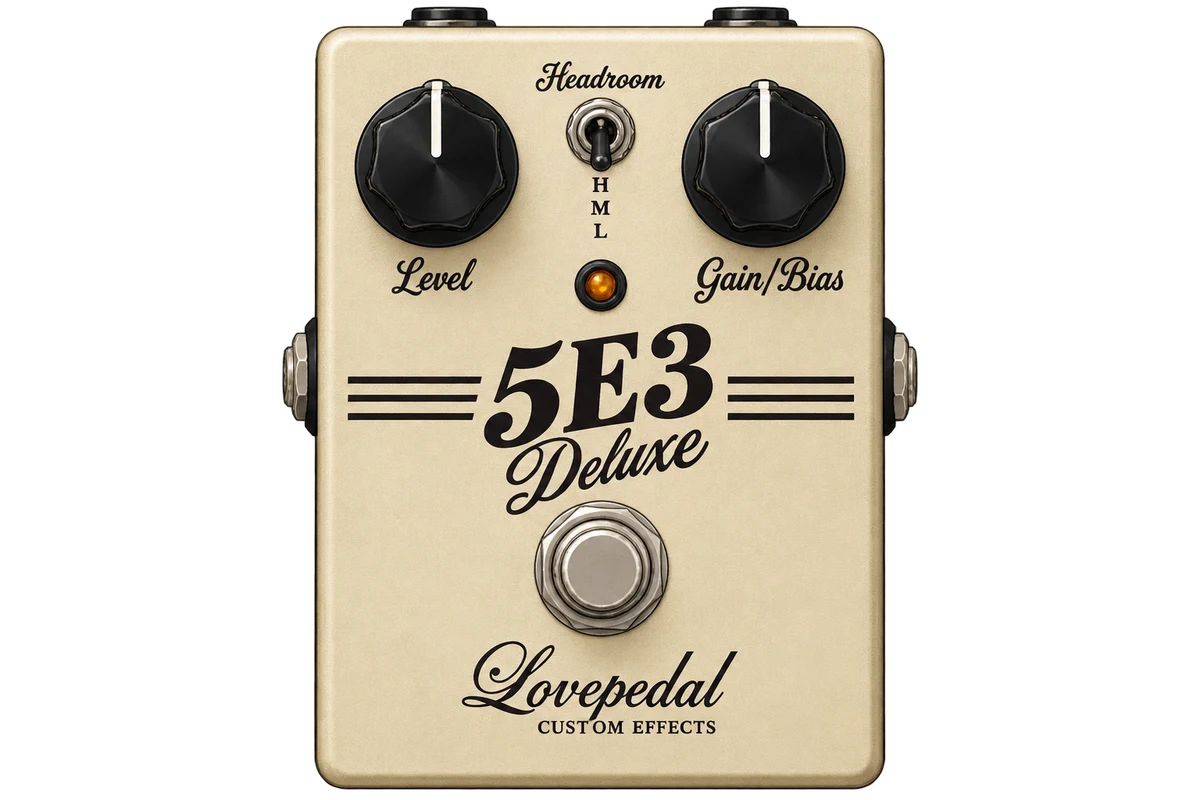

Pedal Database illustration
Image: The Pedal Database
Lovepedal
5E3 Deluxe
OverdriveCurrent
Lovepedal 5E3 Deluxe overdrive pedal.
Quick specs
- Power
- 9V-22V DC
- Current draw
- 6 mA
- Dimensions (in)
- 2.37 × 4.37 × 1.07 in
- Bypass
- True bypass
- Inputs
- 1× 1/4" TS mono
- Outputs
- 1× 1/4" TS mono
Compare this pedal
Pick a second pedal to see the two side by side.
Controls
Not documented.
Power requirements
- Voltage
- 9V-22V DC
- Power type
- DC
- Polarity
- center-negative
- Current draw
- 6 mA
- Battery operation
- Yes
- Battery type
- 9V
Dimensions & weight
- Width
- 2.37 in
- Depth
- 4.37 in
- Height
- 1.07 in
Connections
- Inputs
- 1× 1/4" TS mono
- Outputs
- 1× 1/4" TS mono
Features
- Bypass
- True bypass
- SKU
- 5E3-DELUXE
Documentation
- Manufacturer page
- Visit
- Manual
- —
- Specs verified
- 2026-09-22
